Glazed Steel Profile System
Fire Resistant

Up to 120 mins
EN 1634-1 up to EI120

Acoustic Reduction

Up to 45dB

Ballistic Resistant

BS EN 1522
FB3NS to FB7NS

Intruder Resistant

BS EN 1627
RC2 to RC5 and PAS 24

Glas-Dor

Our Glazed Steel Profile System

GLAS-DOR is our fire-resistant steel profile system with a core of fire resistant insulation for glazed doors, sliding doors, partition walls and window sections. Tested to PAS 24 and approved by Secured by Design, the official UK Police initiative to ‘design out crime’, GLAS-DOR can combine both fire and security resistance.

Ideal for use in offices, shopping centres, airports, hotels, hospitals, schools and other similar public buildings; GLAS-DOR is manufactured in the UK and available made-to-measure.

Key Features
  • Fire resistance up to 2 hours – EN 1634-1
  • Fire-resistant sliding doors up to 30 mins
  • Available tested to PAS 24*
  • Burglary and bullet resistance
  • Door leaf and frame profiles available 30, 50 and 85 mm
  • Narrow 20mm and wide profiles available: 85, 130, 180 or 260 mm
  • Finger trap gasket tested to EN 1634-1

*Available tested to PAS 24 and approved by Secured by Design in certain configurations. Speak to our sales team for more information

Third Party Certified

Up to 2 Hours Fire Resistance

GLAS-DOR steel fire resistant sections have been tested in accordance with EN 1634-1. Wall sections offer up to 120 minutes integrity and insulation, doorsets up to 90 minutes integrity and 60 minutes insulation. Double sliding doors now offer up to 30 minutes integiryt and insulation.

Door and wall sections make up the fire cell partitions in, for example, corridors, main passageways and stairwells used as evacuation routes in the event of a fire. The solid fire resistant insulating core bertween the steel profiles effectively reduces heat transfer from the side of the door or wall exposed to the fire.

Key Features
  • Fire resistance up to 2 hours – EN 1634-1
  • Fire-resistant sliding doors up to 30 mins
  • Available tested to PAS 24*
  • Burglary and bullet resistance
  • Door leaf and frame profiles available 30, 50 and 85 mm
  • Narrow 20mm and wide profiles available: 85, 130, 180 or 260 mm
  • Finger trap gasket tested to EN 1634-1

*Available tested to PAS 24 and approved by Secured by Design in certain configurations. Speak to our sales team for more information

Third Party Certified

Up to 2 Hours Fire Resistance

GLAS-DOR steel fire resistant sections have been tested in accordance with EN 1634-1. Wall sections offer up to 120 minutes integrity and insulation, doorsets up to 90 minutes integrity and 60 minutes insulation. Double sliding doors now offer up to 30 minutes integiryt and insulation.

Door and wall sections make up the fire cell partitions in, for example, corridors, main passageways and stairwells used as evacuation routes in the event of a fire. The solid fire resistant insulating core bertween the steel profiles effectively reduces heat transfer from the side of the door or wall exposed to the fire.

Combined Fire and Security Resistance

The GLAS-DOR system is type-approved for fire-resistance and burglary resistance, e.g. EI 60 and PAS 24. Fire-resistance is provided in accordance with the applicable type approval certificate. Burglary resistance classes are in accordance with standard ENV 1627.

The type approval certificates mean that “labelled” sections can be used to comply with specific requirements for fire and burglary resistance with a transparent solution in stairwells. It is also possible to move exterior protection from an entrance and also comply with these requirements in stairwells, for example, that may separate various activities. The profile depth can be adjusted to suit specific requirements, e.g. 65, 70 and 90 mm. In addition to requirements for fire-resistance, glass must also comply with requirements for burglary resistance as per EN 356 as well as fittings. Type-approved solutions include, among other things, multipoint locks (MPL).

Unique Fire-Resistant Sliding GLAS-DOR

We have developed and tested a type-approved 30/30 fire-resistant glazed sliding door to EN 1634-1. The door is operated using Besam Unislide (including LD 550494). Max section dimensions 10m x 3m, and the max door leaf dimensions are 1250mm. This provides a max opening of 2210mm for bi-parting sliding doors.

Please note that door leaves in sliding doors must not pass over any vertical element as there is a risk of damages. Sliding doors must not be installed along evacuation routes, and if required, an emergency exit door should be installed at the side.

Combined Fire and Security Resistance

The GLAS-DOR system is type-approved for fire-resistance and burglary resistance, e.g. EI 60 and PAS 24. Fire-resistance is provided in accordance with the applicable type approval certificate. Burglary resistance classes are in accordance with standard ENV 1627.

The type approval certificates mean that “labelled” sections can be used to comply with specific requirements for fire and burglary resistance with a transparent solution in stairwells. It is also possible to move exterior protection from an entrance and also comply with these requirements in stairwells, for example, that may separate various activities. The profile depth can be adjusted to suit specific requirements, e.g. 65, 70 and 90 mm. In addition to requirements for fire-resistance, glass must also comply with requirements for burglary resistance as per EN 356 as well as fittings. Type-approved solutions include, among other things, multipoint locks (MPL).

Unique Fire-Resistant Sliding GLAS-DOR

We have developed and tested a type-approved 30/30 fire-resistant glazed sliding door to EN 1634-1. The door is operated using Besam Unislide (including LD 550494). Max section dimensions 10m x 3m, and the max door leaf dimensions are 1250mm. This provides a max opening of 2210mm for bi-parting sliding doors.

Please note that door leaves in sliding doors must not pass over any vertical element as there is a risk of damages. Sliding doors must not be installed along evacuation routes, and if required, an emergency exit door should be installed at the side.

Size and Configurations

The systems can be adapted to suit requirements and are type approved, with features including finger trap gaskets. The systems have profiles adapted for modular locks (85 mm) as well as narrow (20 mm) and wide (130, 180 and 260 mm) profiles. These tested and approved systems also come in a wide variety of heights and widths. Wall sections up to 3.3m height and with a free edge have been tested as per EN 1634-1 to ensure compliance up to EI 120.

GLAS-DOR is available with both insulated and non-insulated steel profiles. Insulated profiles are thermally broken and offer lower U Values and higher acoustic reduction. These are available fire rated for both Integrity and Insulation. Non-insulated profiles are hollow and are available fire rated for Integrity only.

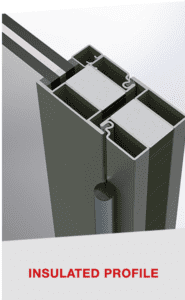

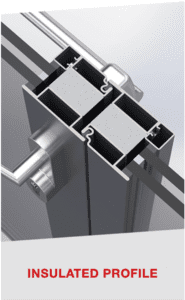

Insulated Profile
Insulated Profile

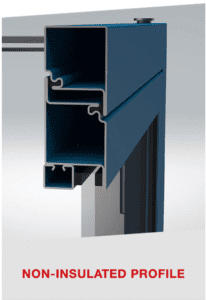

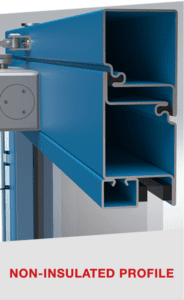

Non-Insulated Profile
Non-Insulated Profile

Finishes

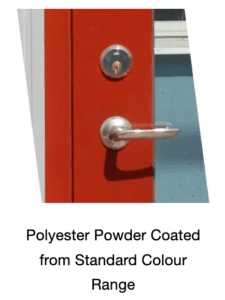

Polyester Powder Coated from Standard Colour Range

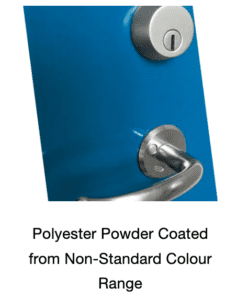

Polyester Powder Coated from Non-Standard Colour Range

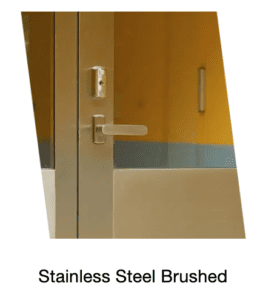

Stainless Steel Brushed

Suitable for a Wide Range of Architectural Projects

Robust GLAS-DOR profile systems are intended for use in glazed door and sliding door sections and wall and window sections in offices, shopping centres, airports, hotels, sports centres, banks, embassies, prisons, schools, and hospitals, etc.
